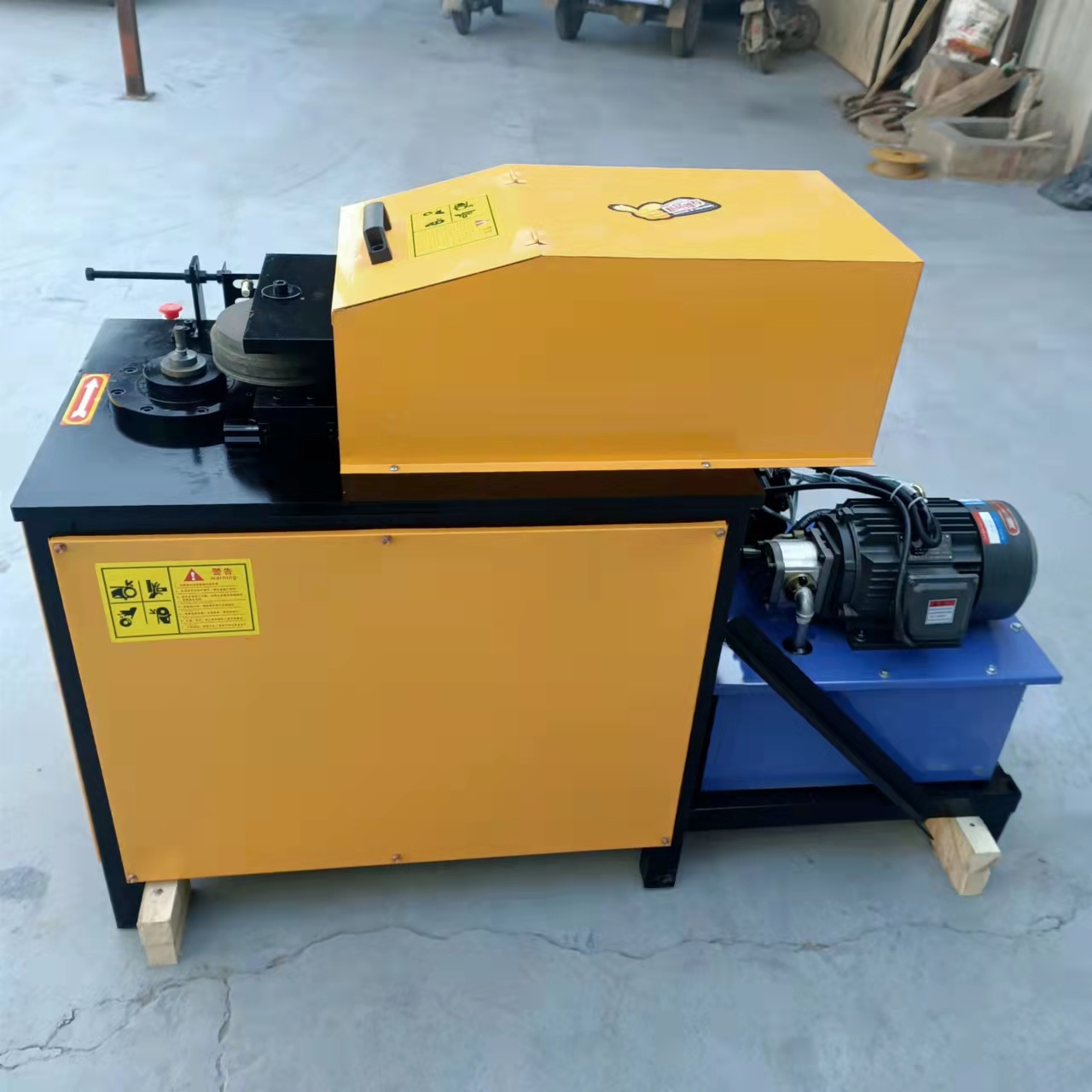

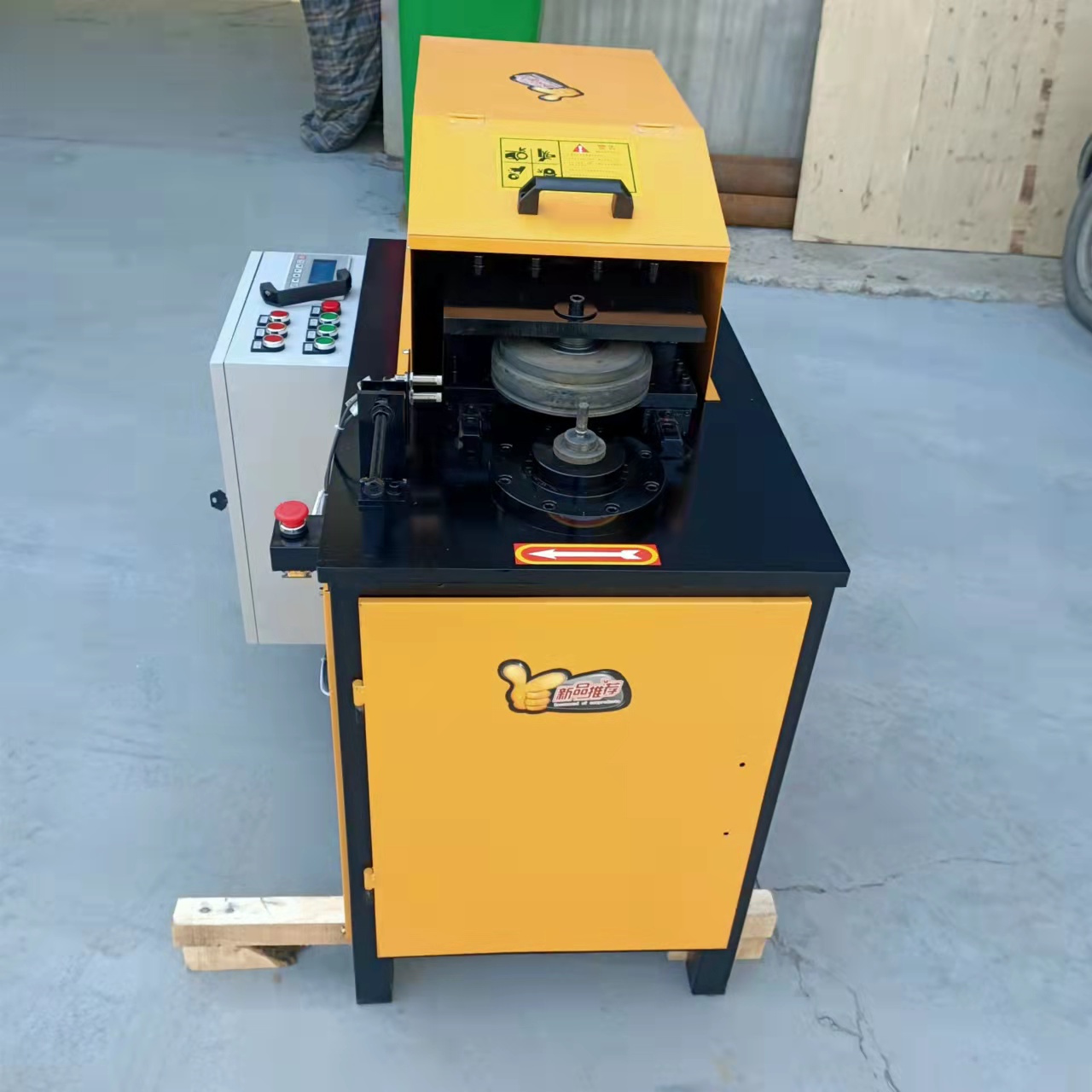

Hydraulic pipe bulging machine, water pipe grooving machine, fire-fighting pipe butt joint pressing machine, pipe grooving machine, pipe indentation processing equipment, small bend pipe bulging machine, pipe butt joint bulging machine.
The drum drum machine is mainly used for connecting the hose of the tap water pipe fire-fighting pipeline to the drum drum press, and pressing the groove of the automobile water tank joint, stainless steel pipe joint and iron pipe joint.
Model: 300
Machining diameter: 20-300mm
Machining wall thickness: 0.5-3.5mm
Processing customization: Yes
Spindle power: 4kw/ level 6
Spindle speed: 256 RPM
Number of drums: 1-2
Can be processed: all kinds of pipes
Voltage: 380v
Pump power: 2.2kw/ level 4
Cylinder stroke: 150mm
Tank capacity: 25kg
Solenoid valve: 220v fast and slow valve
Weight: 400kg
Working form: Automatic
Dimensions: 1500*750*1050mm
