Product introduction

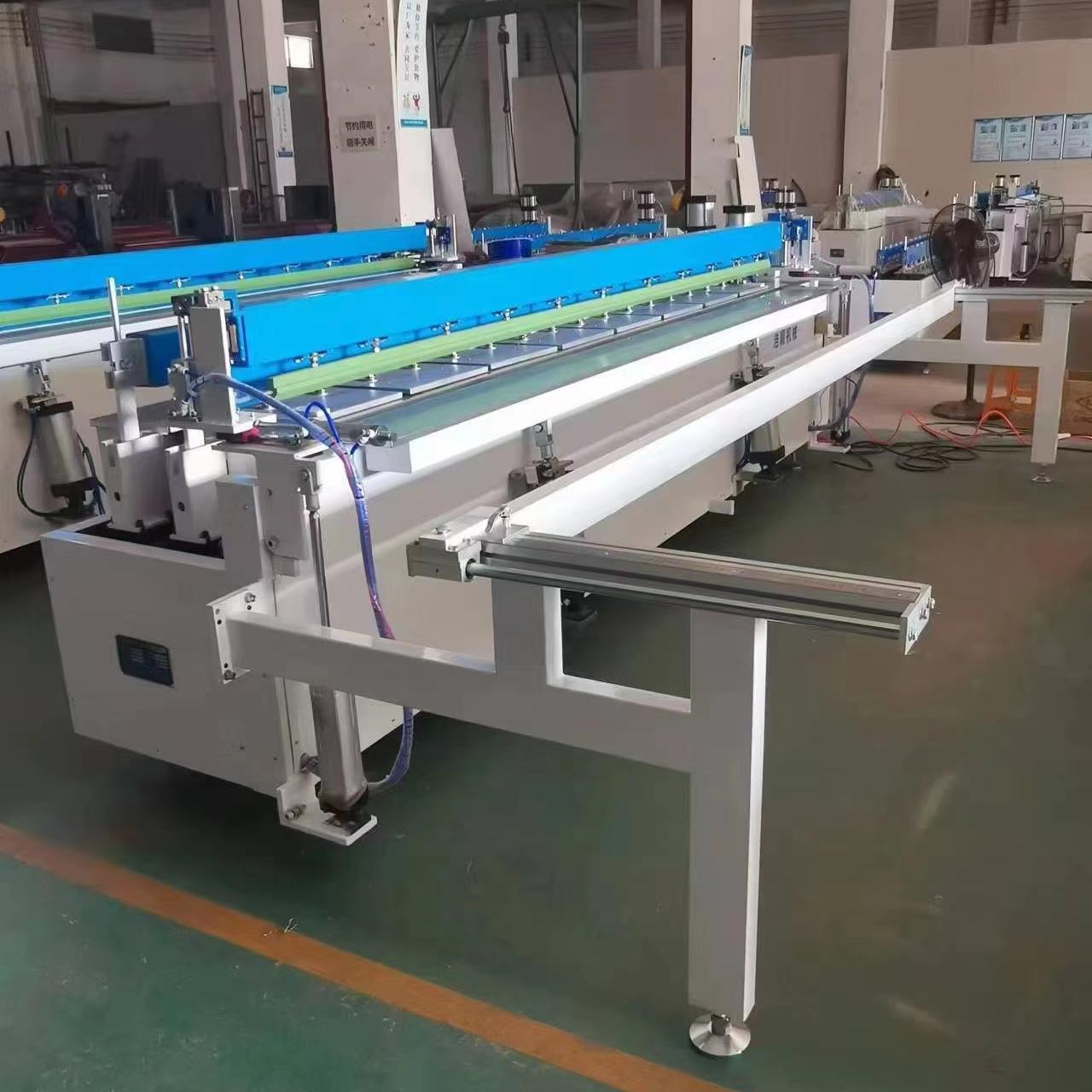

Plastic plate welding from manual to automatic machine welding, no welding rod, no weld leakage phenomenon, reduce your cost, improve labor efficiency, save the plate. Automatic plastic plate welding machine, is an electrical integration of automatic mechanical equipment. Developed according to the principle of hot plate heating welding, it is suitable for all thermoplastic sheet welding. The use of microcomputer control with the function of pressure regulation does not require the welding rod plate itself to melt and splice itself, the interface is smooth and beautiful, high strength.
Machine technical parameter
Machine length: 3900mm | machine width: 1600 mm |
Machine height: 1100 mm | total weight: 2000kg |
Processing thickness: 3-30mm | processing effective length: 3000mm |
Minimum circle diameter: 400mm | Heating method: integral heating |
Air pressure: 6-8(kg.f/cm2) | Energy consumption: 0.0052 (m³/min) |
Working principle: hot plate heating welding principle | Rated voltage: 380V three-phase AC power supply |
Winding motor power: 1.5kw, speed: 1400R/min | voltage: 380V50HZ |
Heating tube power: 12kw | Control interface :PLC control (Xinjie) |
Suitable material: PP, PE, etc. | Bending Angle: 0-110 degrees (CNC adjustment Angle) |
