Regarding the diameter range of our compression hose (Max hose ID): 6~51mm
Scope of deduction: 4 points, 6 points, 1 inch, 1 inch 2, 1 inch and a half, 2 inches
Theoretical Crimping Force: 360Ton
Die Opening&Closing:+/-25mm
Opening without dies: 114mm
Motor Size: 3Kw
Electrical Requirement: 380V/50Hz 3Ph~220V/50Hz 1Ph
Zhang He's Total Crimping Cycle Time (20S)
Accuracy of pressure control: 0.02mm
Un evenness of the product after compression: ≤ 0.1mm
Overall weight: 260Kg

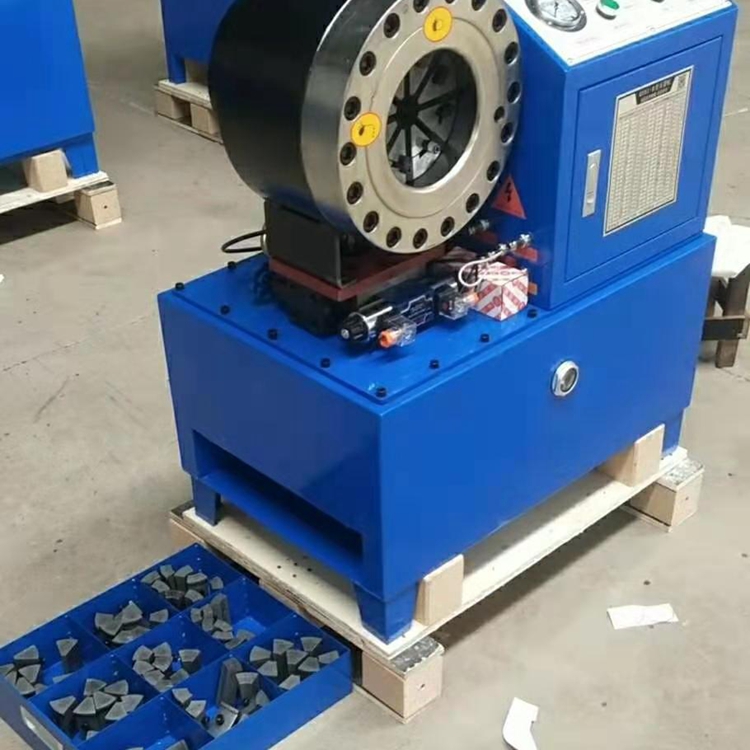

Die sets: 15 19 23 26 length 60mm
31 36 41 length 70mm
47 55 63 Length 80mm
Dimensions: 730 * 470 * 802mm
Max hose ID: 6~51mm
