PP/PE/PPVC plastic plate coiling machine, plate coiling machine, drum coiling machine, touch welding machine, plate receiving machine and welding machine.
I. Product introduction

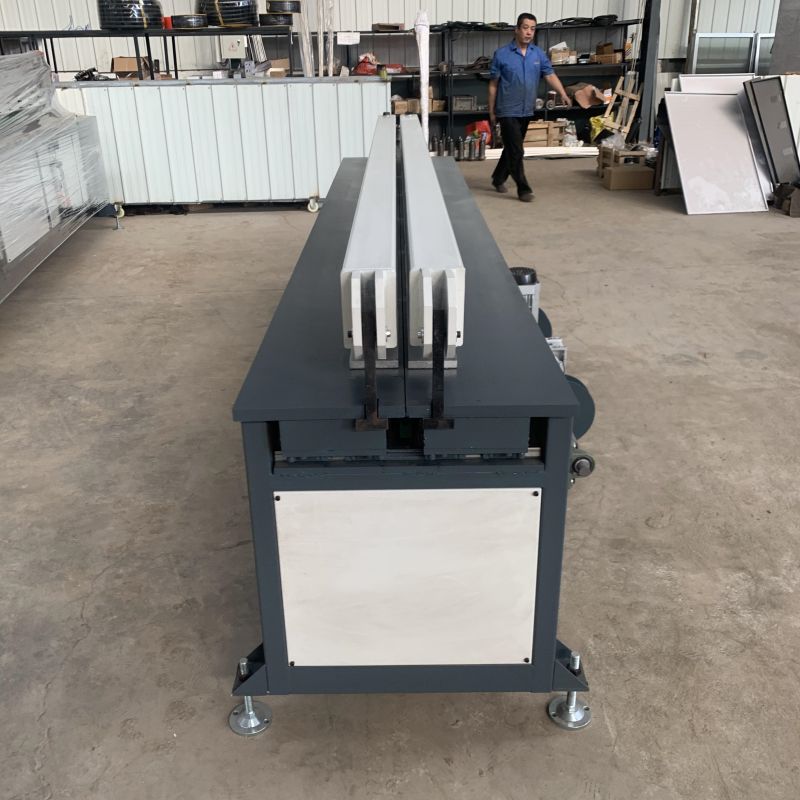

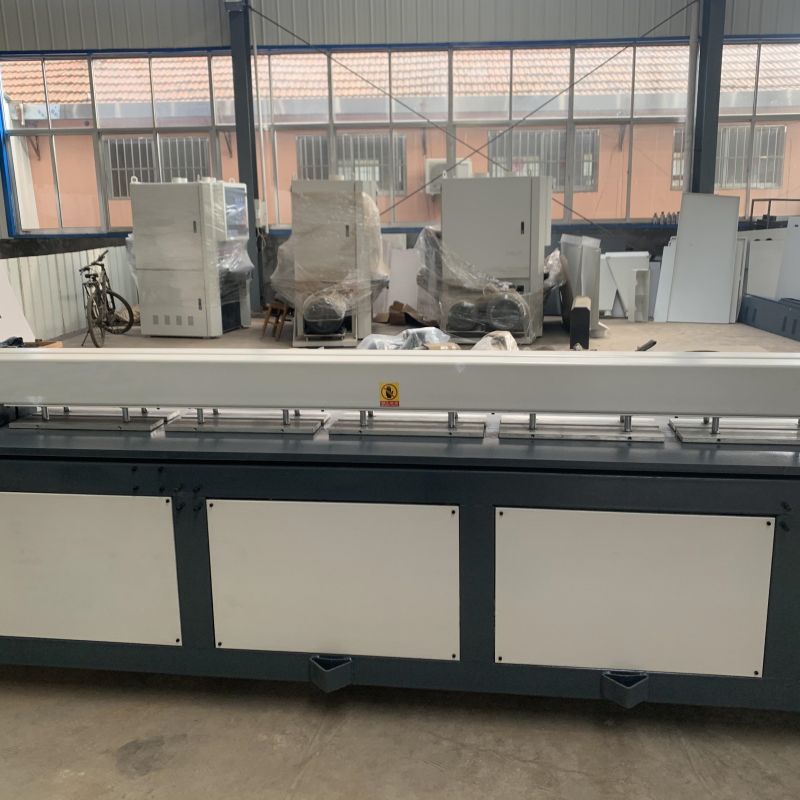

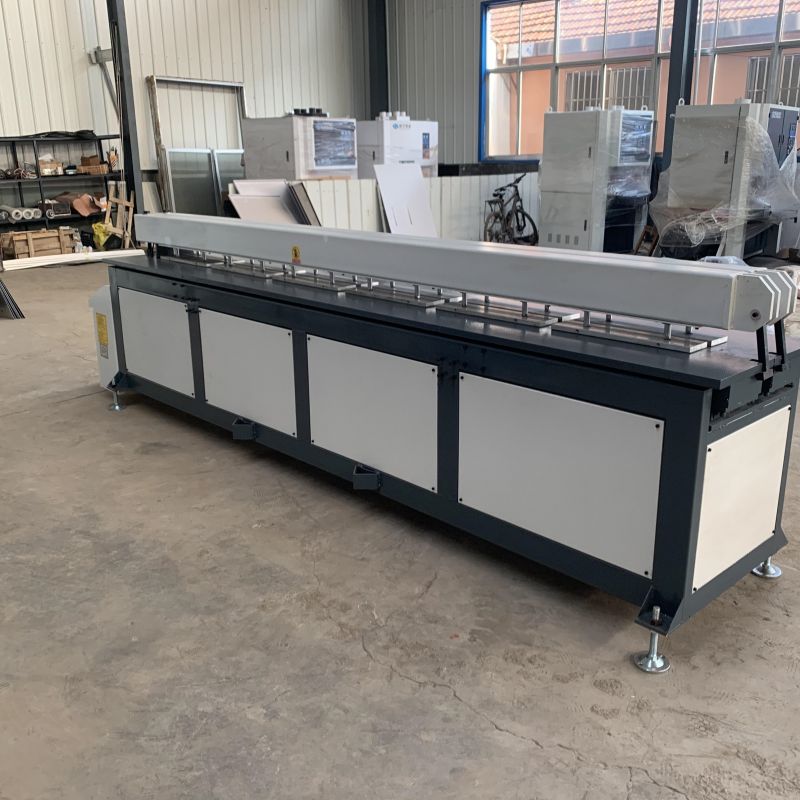

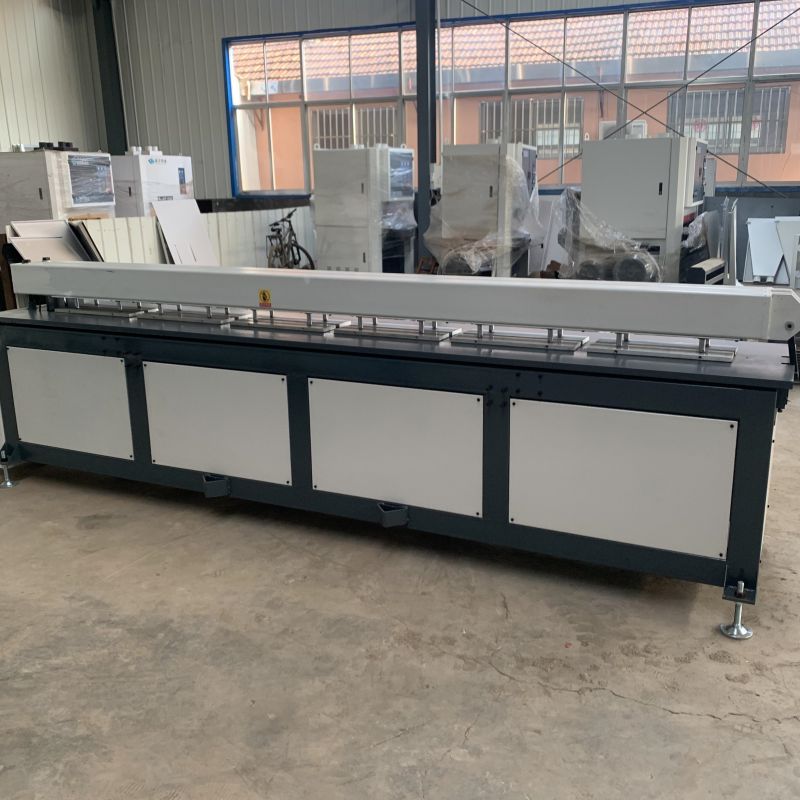

Automatic plastic plate collision welding machine is an electrical integrated automatic mechanical equipment, which is developed according to the principle of hot plate heating and welding, and is suitable for rounding and welding all thermoplastic plates.
Working principle: hot plate heating welding principle
2.technical parameter
Machine length: 3950mm
Machine width: 1200 mm
Machine height: 1100 mm
Total weight: 1500kg
Processing thickness: 3-30mm
Effective length of processing: 3000mm
Minimum diameter of the coil: 350mm
Heating method: overall heating
Air source pressure: 6-8 (kg. f/cm2)
Energy consumption of gas source: 0.0052 (m) ³/ Min)
Round winding motor power: 1.5kw380V
Speed: 1400R/min
Heating tube power: 6kw
Control interface: button style
Suitable materials: PP, PE, etc
3.Spare parts detail
1. Total number of cylinders: 32 (Zhejiang Asahi Pneumatic)
2. Heating knife: (1 heating knife) imported from Taiwan (heating tube can be directly replaced without changing the knife)
3. Cross beam length: 3600mm
4. Table motion slider: 10 sets (Taiwan Shangyin)
5. Motor model: HCH aluminum motor 1.5kw
6. countertop: manganese plate with 70 * 200U shaped steel (processed by gantry milling to ensure the firmness and flatness of the countertop)
7. Heating tube material: 304 stainless steel
8. Basic material of heating knife: aluminum (one-year warranty)
9. Heating knife Teflon thickness: 0.3mm (single side)
10. Sliding block model: (Taiwan Shangyin) 25mm linear guide rail
11. Heating time: 20 minutes from start to normal working time
12. Normal working energy consumption: 5kw
13. Consumables: Teflon coating on heating knife
14. Random accessories: toolbox
