Haixiang Power Machinery Co., Ltd. has 17 senior engineers, 29 technicians and 150 technicians. It mainly produces professional construction and processing companies for construction machinery, road machinery, mining equipment, garden machinery, etc., as well as high-tech advanced mine construction. The development of products and new products, all products have national licenses. All employees of Haixiang Power Machinery Co., Ltd. adhere to the principle that reputation is life, quality for survival, customers are food and clothing, and make new contributions to new and old customers at home and abroad. Welcome friends from all walks of life come to visit, guide and negotiate business.

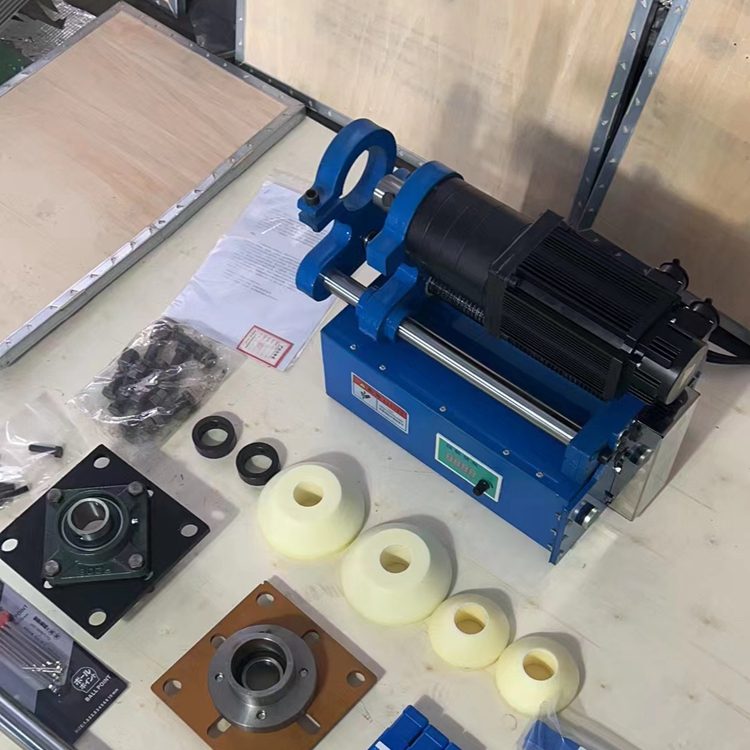

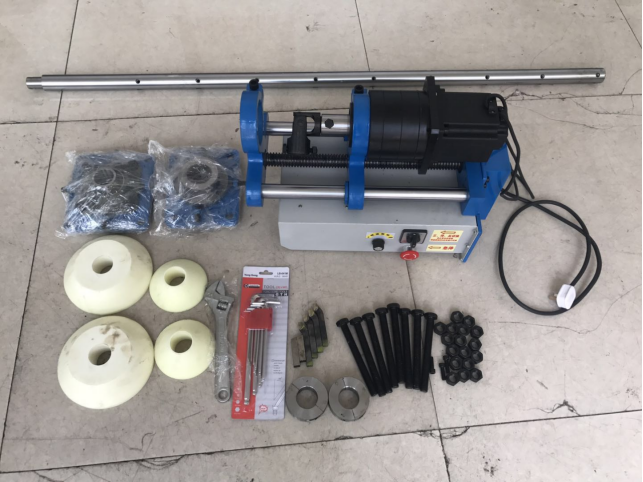

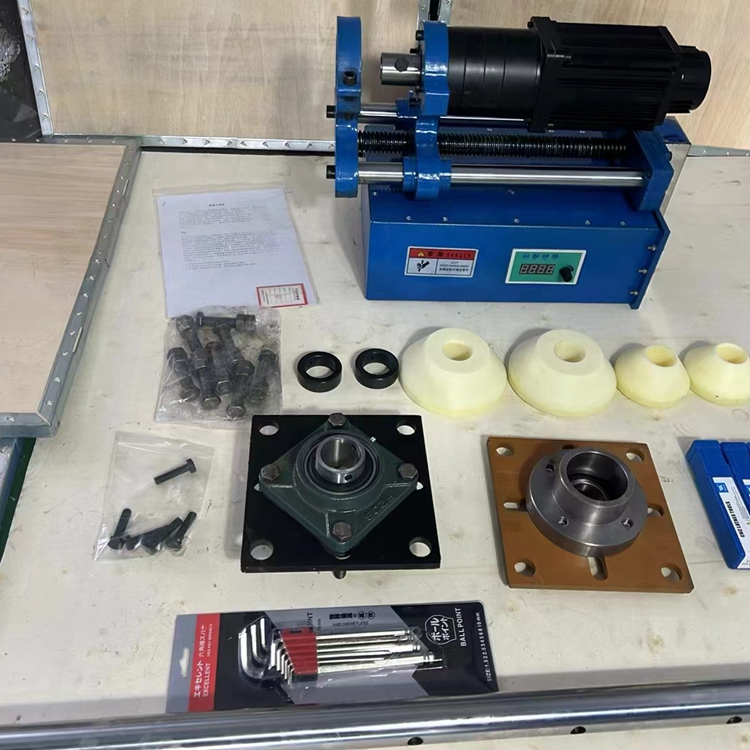

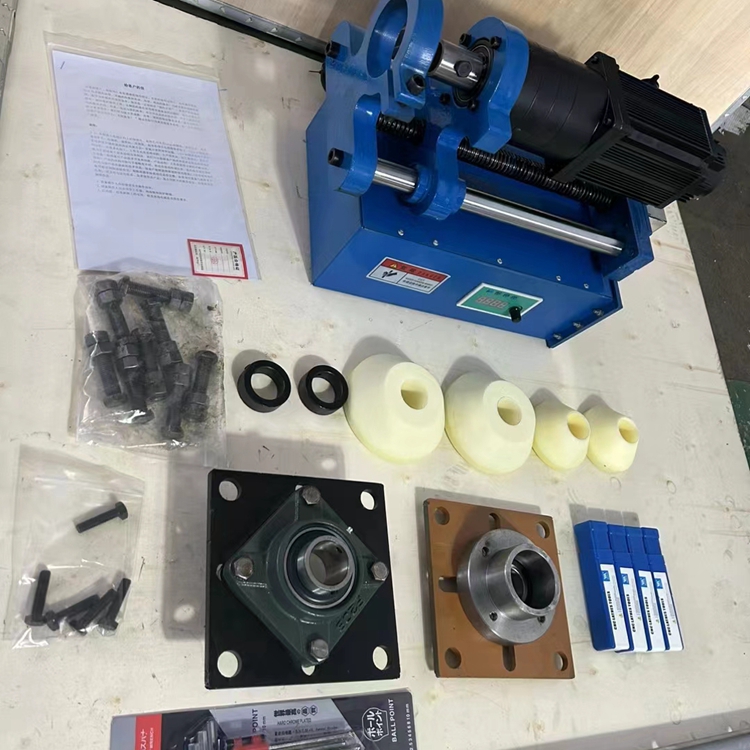

Boring machine
Product introduction
Widely used in various construction machinery shaft pin hole, rotary hole, main arm connection hole, ring hole processing and welding repair.Machining and repair of concentric holes and multi-row holes in excavators, loaders, cranes, crawler cranes and large Marine cranes, and positioning and installation at one time can ensure the concentricity of multiple holes.
Product parameters
Main motor motor power | DC 220v, 1.5kw, stepless variable (0-180 RPM). |
Feed box | stepless speed regulation, automatic feed. |
Cutting machine | 220V, 120w stepless speed regulation |
Boring range | 45 mm -200 mm diameter. |
Boring bar specification | 40mm*1500mm (can be customized according to customer requirements) |
Boring bar material | 45#. |
Work schedule | 300 mm (customer requirements can be customized). |
Weight | about 60㎏. |
Positioning cone sleeve | aperture 40 mm, 4 pieces. |
Adjustable support frame | 1 set (2 before and 2 after). |
Tool holder | 1 set (processing aperture 90-130mm 1, 130-180mm 1). |
Cutting tools | 4 (W1 2 2, 2 HSS). |
Hexagon socket wrench | 1 set. |
10 "adjustable spanner | 1 set. |
Top silk | M8*10mm4, M8*25mm4. |
Coupling bolt | M10*65mm1. |
Packing cases | 2 (1 main machine, 1 boring tool bar). |
Random data | 1 set (operation manual and qualification certificate). |
Price:EXW 1350 USD
Contact: Tel/whatsApp/wechat: +8618660728836
