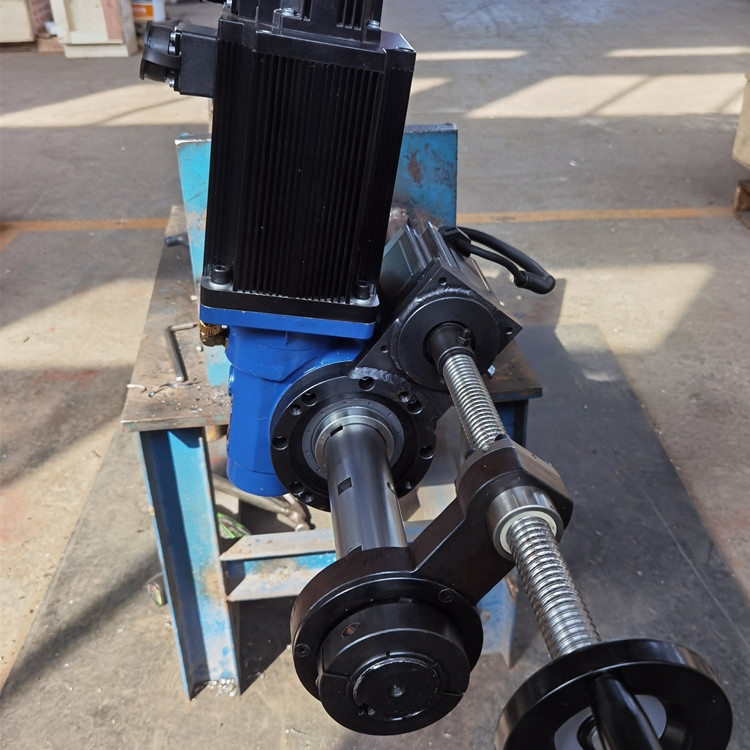

Boring and welding machine 价格:

Environmental conditions:

1. Environmental temperature: -10 ℃~+40 ℃.

2. Storage temperature: -25 ℃~+55 ℃.

3. Relative humidity: 20 ℃ ≤ 85%, 40 ℃ ≤ 50%

(It should be placed in a dry and ventilated place to prevent direct sunlight and rain)

Please apply engine oil to the screw and guide rail during long-term storage

Explanation: Fixed length boring, spiral welding, and swing welding are all in automatic mode. As long as these three modes are not selected, they will default to manual mode

Detailed Specification

Environmental conditions:

1. Environmental temperature: -10 ℃~+40 ℃.

2. Storage temperature: -25 ℃~+55 ℃.

3. Relative humidity: 20 ℃ ≤ 85%, 40 ℃ ≤ 50%

(It should be placed in a dry and ventilated place to prevent direct sunlight and rain)

Please apply engine oil to the screw and guide rail during long-term storage

Explanation: Fixed length boring, spiral welding, and swing welding are all in automatic mode. As long as these three modes are not selected, they will default to manual mode


Pupil range: Φ55-300mm
Boring work stroke: 260mm
Mast specifications: 50*1600mm
Working voltage: AC 220v/50hz
Zui high power: 2.5KW (stepless speed regulation)
Spindle speed: 0.1-200r/min
Welding range: Φ55-250mm
Wire diameter: Φ1.0 is recommended
Machine weight: 100KG

Scope of boring:

 55-300mm

Boring work stroke:

260mm

Mast specifications:

50*1600mm

Working voltage:

 AC 220v/60hz

max high power:

2.5KW (stepless speed regulation)

Spindle speed:

0.1-200r/min

Welding range:

55-250mm

Wire diameter:

1.0  recommended

Machine weigh:

100kg
