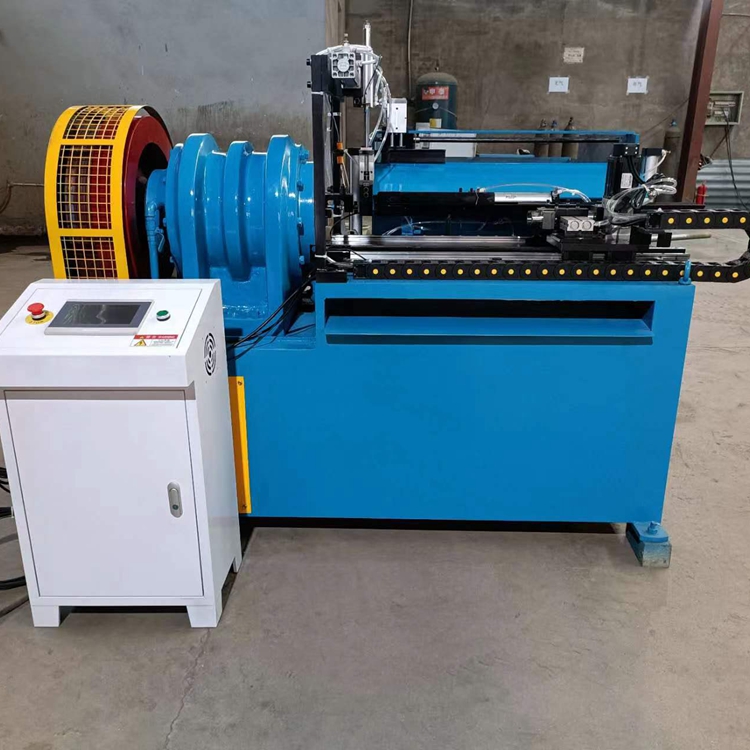

Full-automatic taper pipe machine
Introduction to the Machine
This equipment is used to process metal pipes into conical pipes, which can be selected manually and automatically. It has the characteristics of low noise, easy operation, high output and stable performance when used in conjunction with automatic feeding. The forming time of the workpiece is short, the efficiency is high, the machined surface is smooth, and the workpiece has no scars.
The die of the machine is easy to change, and metal pipes with different shapes can be processed with the cooperation of the corresponding dies to meet different needs.
Maximum shrinkage capacity: outer diameter 50
Maximum tube thickness: mm 0.7-2.0
Mold length: mm 400
Spindle motor power: kw 4.0
Spindle speed: rpm 248
Voltage: 38050HZ
Molding time: seconds 7-30
Weight: T 1.5
Feeding length: mm material length less than 800
Feeding accuracy: mm plus or minus 0.5
Volume size: mm 2200*2500*1500
Product output: 300-400 PCS/hour
Maximum taper: mm 380
Feeding mode: automatic loading and unloading
