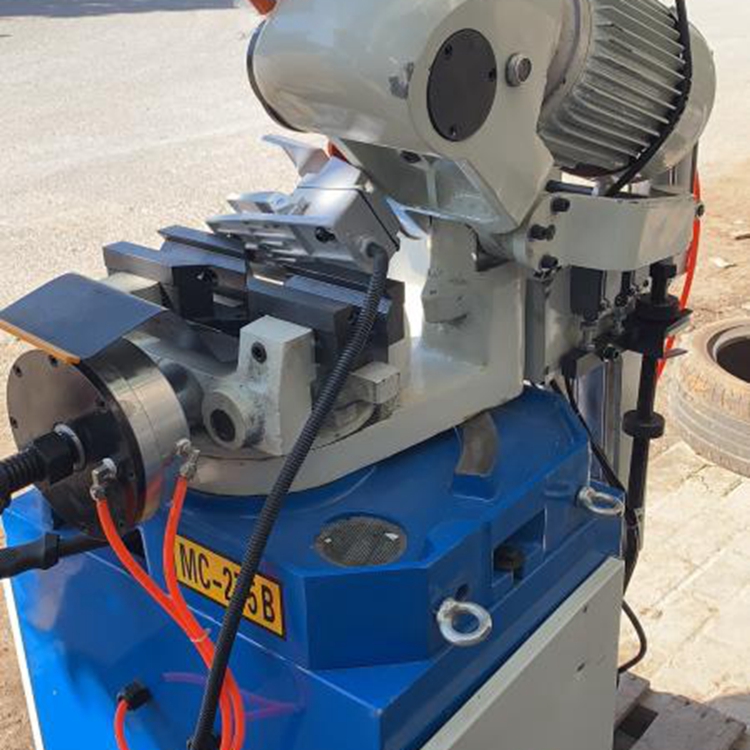

Automatic pipe cutter 价格:

MC-315B metal circular saw machine is a pneumatic sawing machine. It can cut ordinary steel, stainless steel, copper, aluminum and other metal profiles with various cross-sectional shapes, especially aluminum cutting various pipes. When sawing, the material is fed by hand according to the required length (which can be limited), the workpiece is clamped, and the cutter is sawed; Cut off the retracting knife, and release the clamp by manual control sequence. This machine has the advantages of light operation, low noise, no dust pollution, good sawing quality, no burr inside and outside the incision, high production efficiency and bevel cutting at various angles.

Detailed Specification

MC-315B metal circular saw machine is a pneumatic sawing machine. It can cut ordinary steel, stainless steel, copper, aluminum and other metal profiles with various cross-sectional shapes, especially aluminum cutting various pipes. When sawing, the material is fed by hand according to the required length (which can be limited), the workpiece is clamped, and the cutter is sawed; Cut off the retracting knife, and release the clamp by manual control sequence. This machine has the advantages of light operation, low noise, no dust pollution, good sawing quality, no burr inside and outside the incision, high production efficiency and bevel cutting at various angles.

Technical parameters

1. Clamping maximum clamping: 120mm
2. Suitable for saw blade: Outer diameter ≦Φ315
Inner hole Φ32 pin hole 2XΦ11X63 (select parameters see attached table)
3. Main motor: 2/4 pole change 2.3/4 /kw
4. Cooling pump motor: 40W 40W
5. Machine appearance: (L x W x H) : 710*W610*H1350mm
6. Machine weight: 260Kg
7. Pneumatic pressure: 0.4 ~ 0.6Mpa
8. Voltage :380V 50HZ
